9. Operation Record

Click on the menu bar "System Log-Operation Record" to enter the corresponding interface. The operation log records all user operations on the intersection, including the last operation time, the type of message operated, and the signal machine's response, etc.

9.1 Operation Record Overview

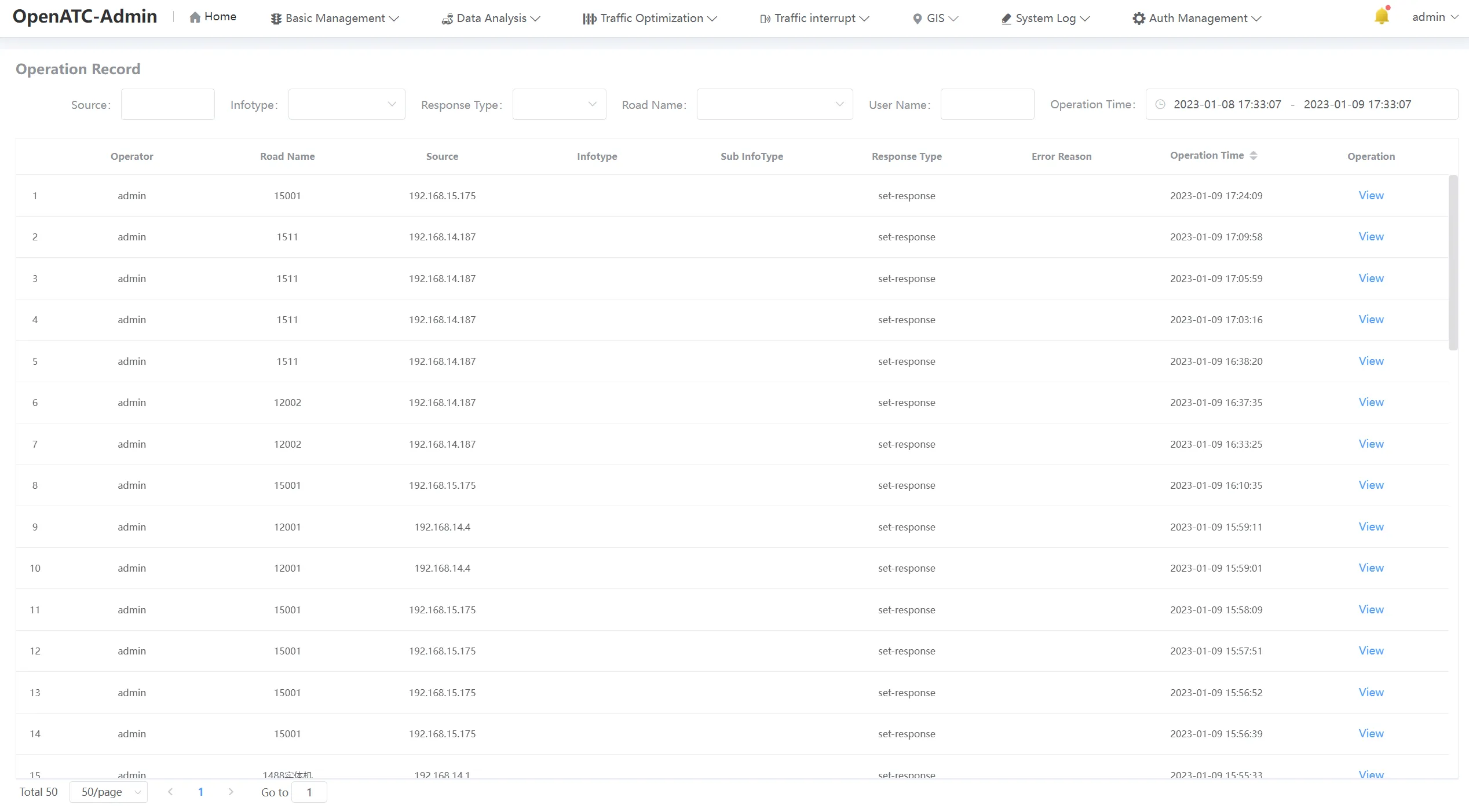

image-20210929133924993

Fig.9-1 Operation Record

9.2 View Operation Record

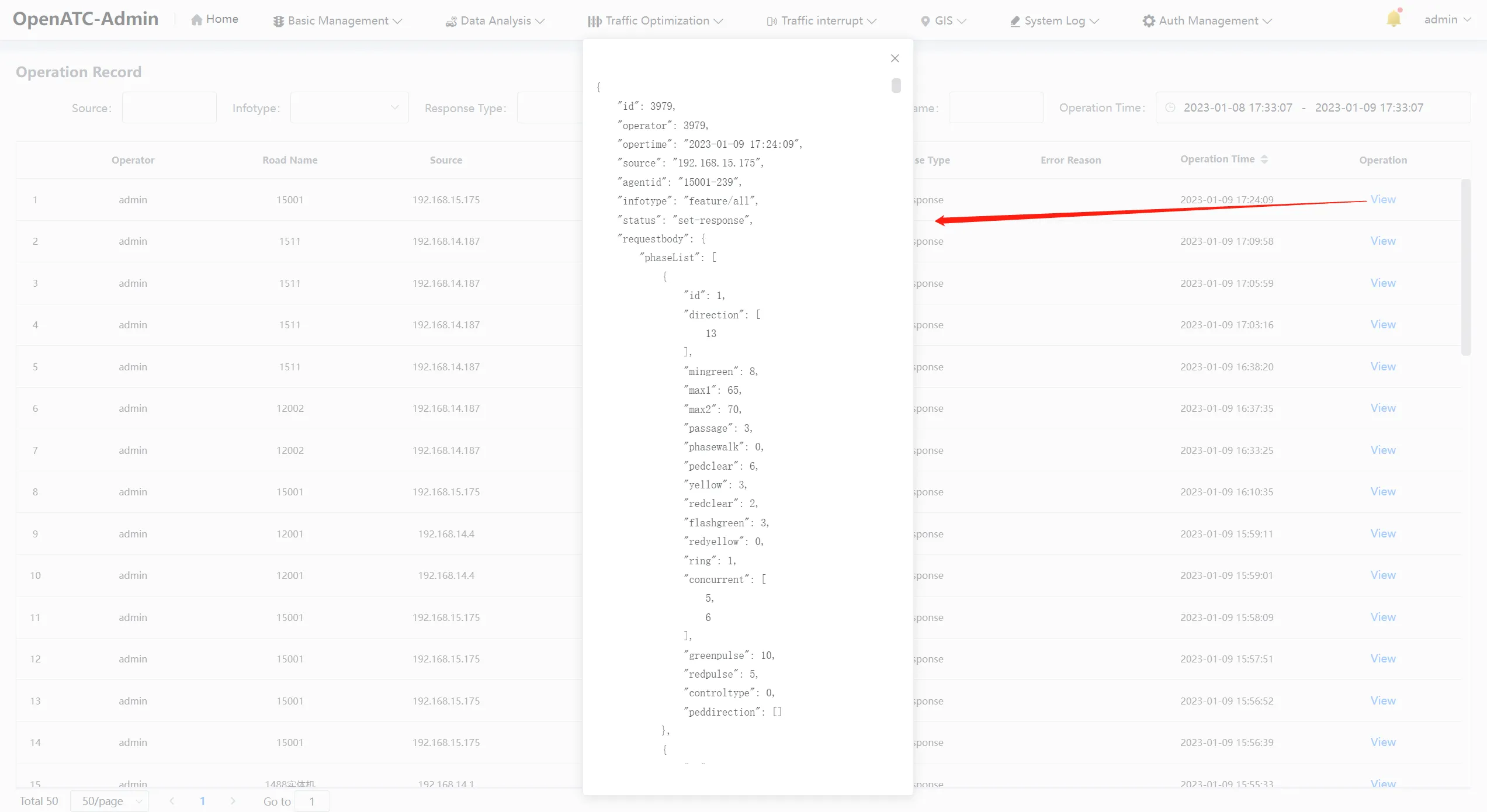

Click View in actions to see the code.

image-20210912144629914

Fig.9-2 View Operation

9.3 Paging Function

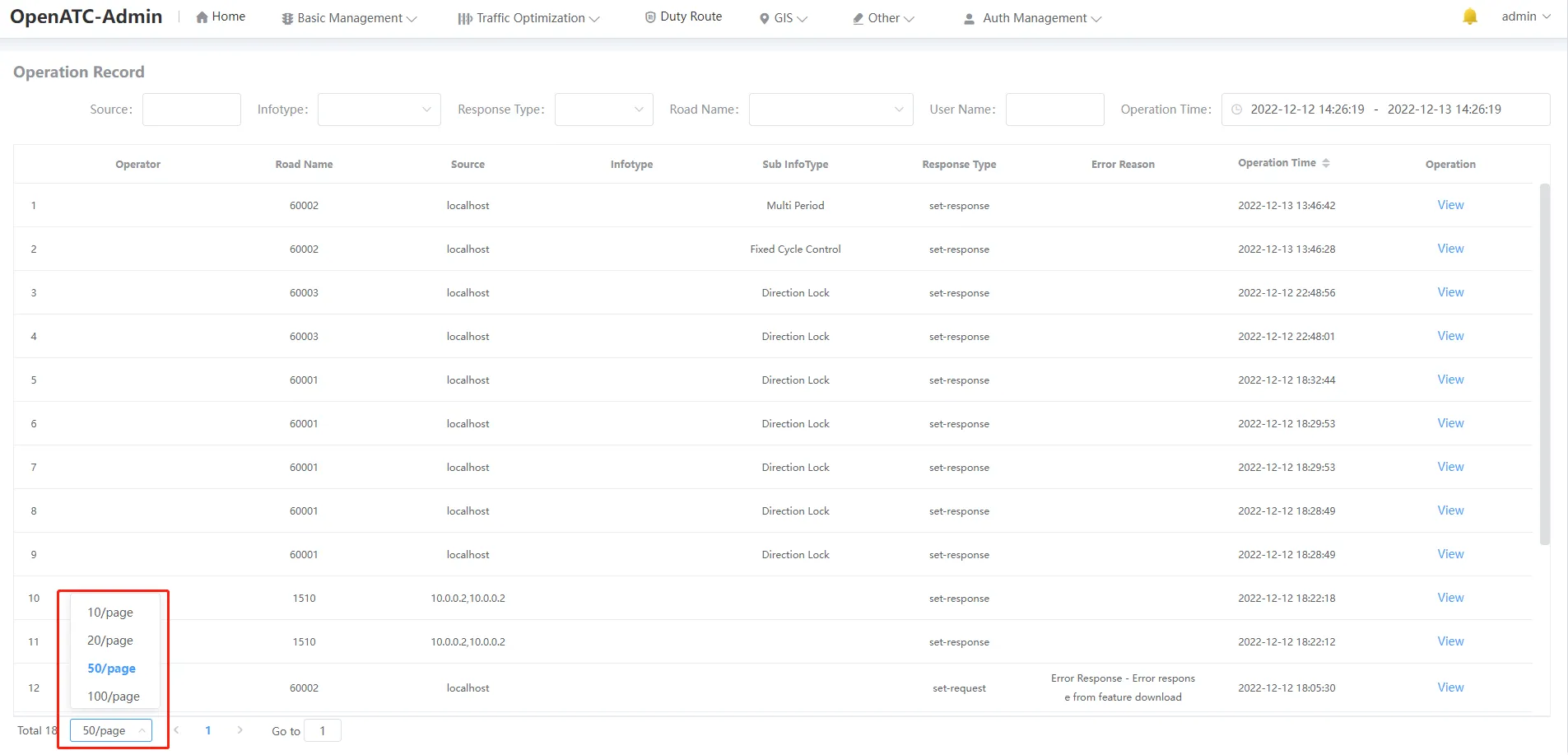

The pagination function can set the number of records displayed per page, and at the same time, it can enter the page number to jump directly to the specified page.

image-20210929134019299

Fig.9-3 Paging Function

9.4 Search Function

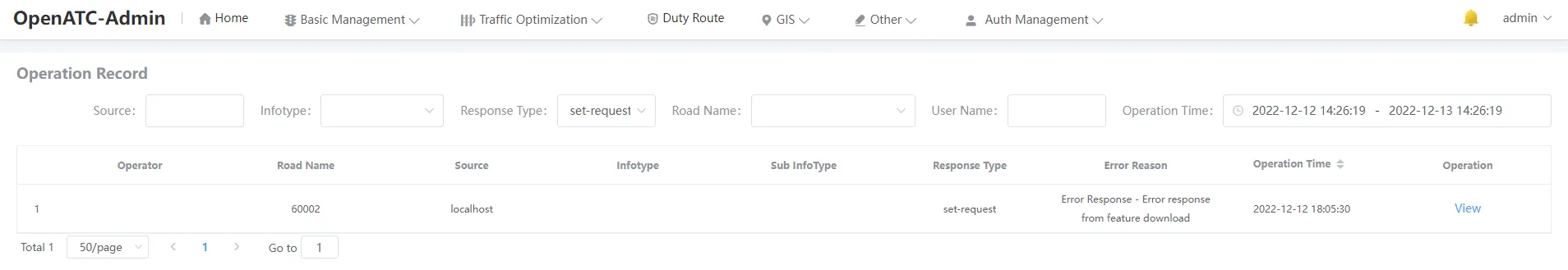

In the main page of operation records, you can perform a fuzzy query based on the filtering criteria.

Fig.9-4 Search Operation Records
